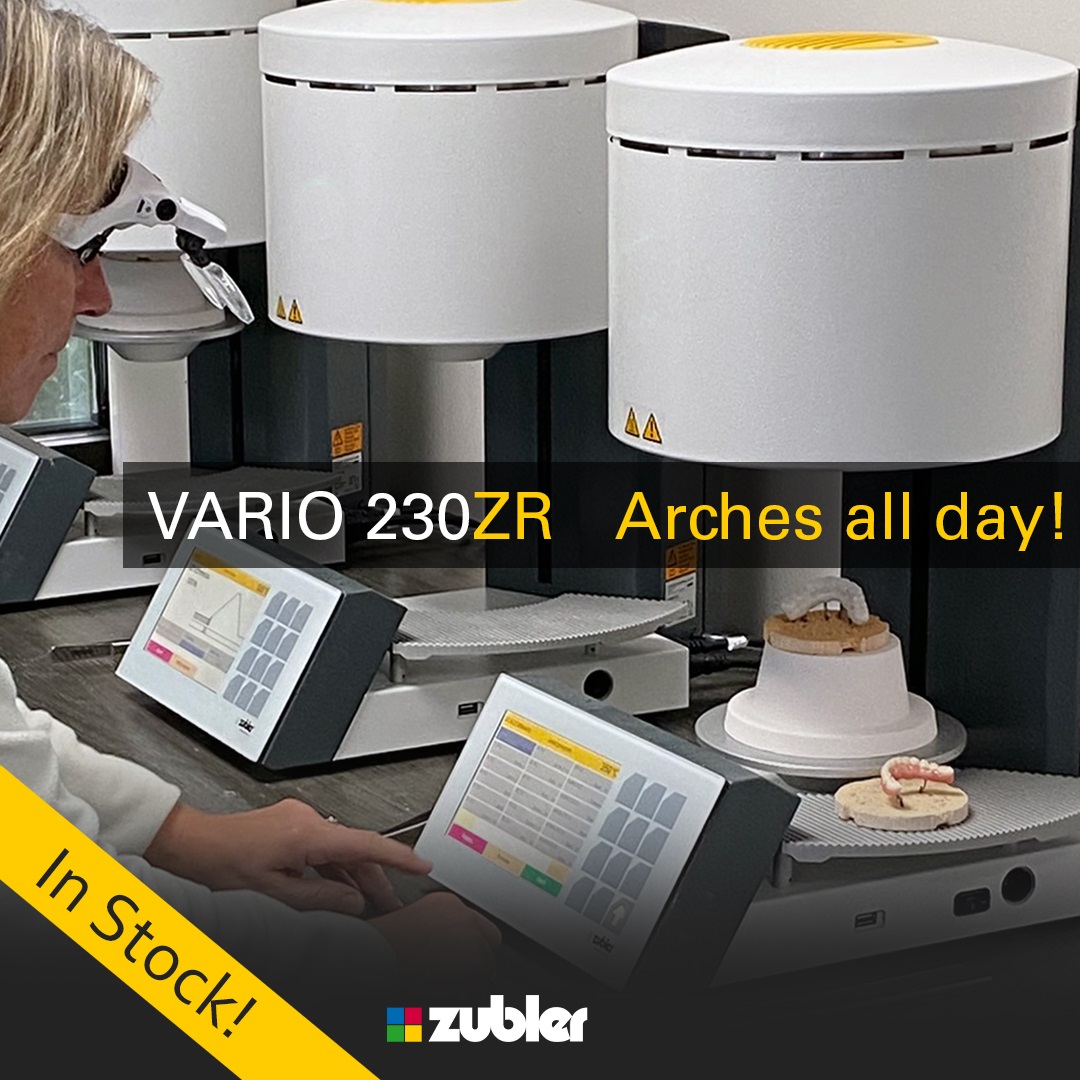

VARIO 230 ZR - furnace for firing ceramics TTC-Mode

VARIO 230 ZR – The only firing chamber in the world with an inside diameter of 120 mm!

Linear cooling process
from an innovative firing chamber design and intelligent software!

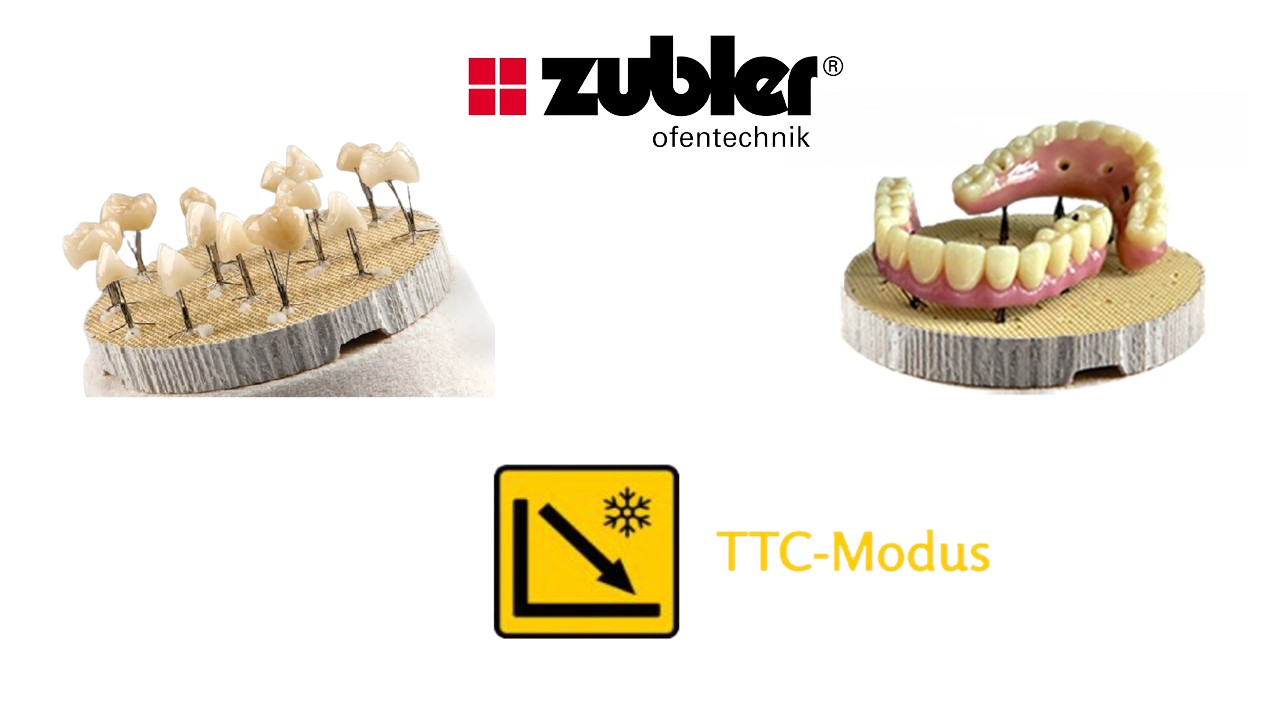

TTC-Mode
The fi ring of dental ceramics on zirconia substructures carries a high risk of crack formation while cooling. With the VARIO 230ZR the new TTC technology is at your disposal.
When engaged, this feature controls the rate of temperature descent, linearly dropping the temperature by a user defi ned degree per minute to evenly cool the objects and avoid sudden changes in temperatures. This feature allows for cool rates between 5 °C/min and 45 °C/min. Thanks to the innovative design of the fi ring chamber and intelligent software, the actively controlled temperature descent of the ceramic below the temperature of transition is ensured. This process will help keep the occurrence of chipping, cracking and microfractures to a minimum.

Z -Dry Mode
For optimal pre-drying, to avoid cracks and blisters, it is best to pre-dry at a constant temperature of 150°C.
Utilizing the symmetrical lift design, chamber temperature and lift position, the VARIO 230/230ZR maintains the optimal pre-dry temperature. By reading the chamber temperature, the VARIO 230/230ZR will adjust the lift to compensate for any changes in the radiant temperature. The advantages:
■ Cracks or blisters are prevented by controlled drying with the Z-Dry Mode.
■ In subsequent fi rings you save wait-time thanks to the Z-Dry Mode. The work can be placed on the fi ring tray well before the programmed start temperature has been attained

USB connection

Simple data transfer and program backup by USB flash drive.

EASY Light Display

Optimum visibility from all viewing angles – even at greater distances and under difficult lighting conditions such as bright sunshine.

Touch display made of safety glass

The innovative and modern touch glass display is made of impact and heat-resistant safety glass. This has proven to be a clean, comfortable and virtually indestructible solution when compared with a membrane keyboard. We now offer a lifetime warranty on the glass!

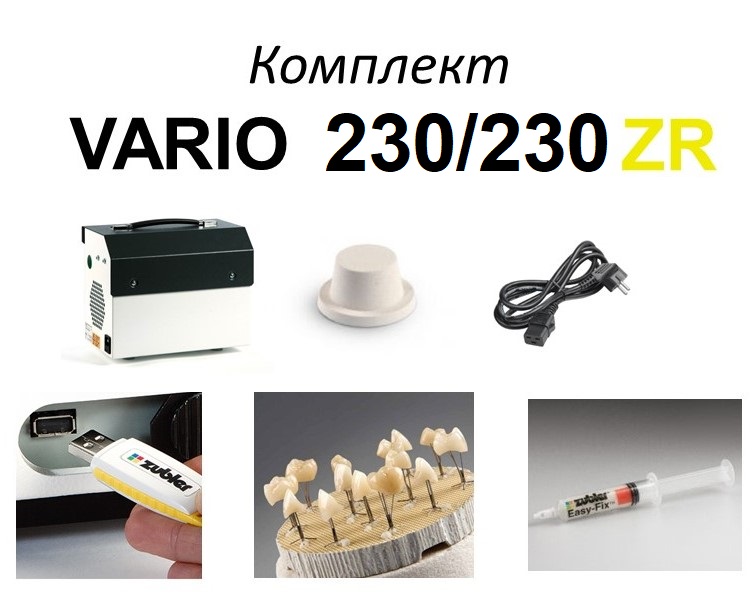

COMPLETE SET:

Vacuum pump = 1 piece, ceramic table for firing = 1 piece, ceramic table for press = 1 piece, muffle tongs for crucibles = 1 piece, large tweezers Zubler = 1 piece, tweezers for crowns and bridges Microstar Easy-Grip = 1 piece, honeycomb ceramic = 1 piece, silicone mold for press crucibles (100 gr, 200 gr, 300 gr) = 3 pieces, packing of plungers for pressing 13 mm = 1 piece, liquid trigger for fixing crowns = 1 piece, flash card (drive) Zubler = 1 pc., Cables for connection = 2 pcs., Air reducer = 1 pc.
