OPTICLUX 10-1 C T1 - magnifier luminaire

Switzerland

Product code: D15817000-00752639

1464 n.u.

OPTICLUX 10-1 C T1 - magnifier luminaire

1464 n.u.

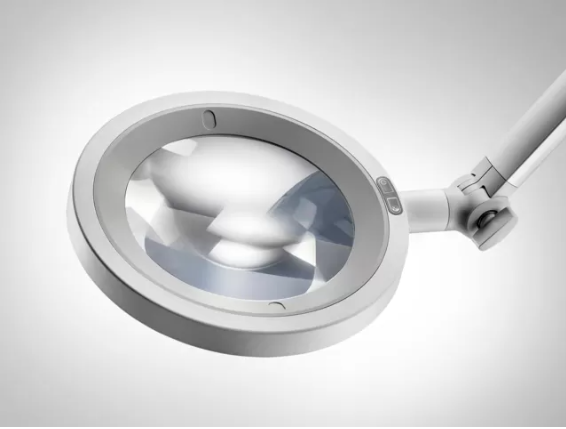

OPTICLUX magnifier luminaire - for demanding tasks

The OPTICLUX magnifier lamp with an arm system combines the best features that a magnifier in the medical workplace should have: a robust magnifying glass, durable LED modules, first-class colour rendering properties and accurately positioned arm joints.

Ideal:
recommended for dermatology, in clinics and practices for human-, dental and veterinary purposes, in laboratories as well as for checking items to be sterilised

Perfect vision:
a dimmable, homogeneous light field with 6,000 Lux at a distance of 15 cm

Natural colour rendering:
Thanks to the first-class colour rendering properties Ra 95

Two modes, one device:
on request with Daylight mode and switchable Wood’s light
Durable: a high-quality plastic lens and precision components


Flexible positioning The long light arm allows a big radius of action with up to 142 cm	Large field of view A scratch-resistant plastic lens with a 160 mm dia. and 3.5 dioptres	No dropping Thanks to special spring linkages and internal friction joints, the lamp head keeps its position

Technical data OPTICLUX 10-1 C T1

Light output *	6 000 Lux @ 0.15 m
Colour temperature *	6 500 K
Colour rendering	Ra > 95
Lens dimension	⌀ 160 mm
Operation	Membrane keypad
Standards	EN 60601-1, EN 60601-2-41

OPTICLUX Ceiling version	OPTICLUX pin version with wall bracket accessories	OPTICLUX pin version with table clamp accessories

OPTICLUX 10-1 C T1 - magnifier luminaire
