Z4 VARIOmatic - exhaust device, for 4 (6) workplaces + possibility of CAD/CAM connection

Z4 VARIOmatic

4-place suction system for up to 4 suction points at the same time. With dirt container, permanent filter and automatic filter cleaning for workplaces and dust-intensive functional devices. Can be expanded using individual modules AP601. Prepared with exhaust air connection as standard.

• Quiet and low-maintenance multi-station suction system with brushless suction turbine (EC motor).

• Elimination of filter bags thanks to a permanent filter with an automatic filter cleaning system.

• Suitable for connection to up to 2 CAM milling machines.

• Can be expanded using additional, external suction point openers.

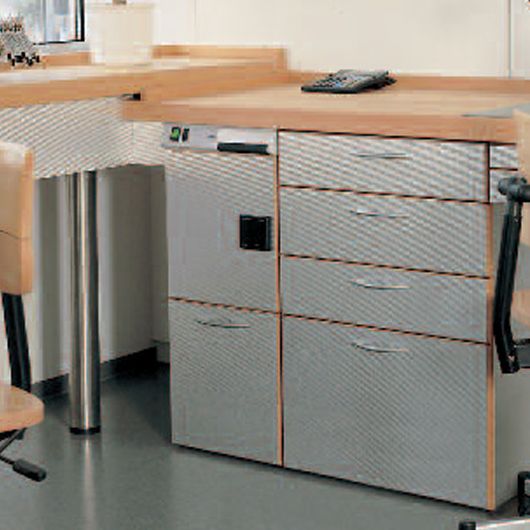

• Gain of space at the individual workstation.

• Improvement of the laboratory climate through exhaust air installation.

Technical Specification

• Width: 330mm
• Height: 810mm
• Depth: 600mm
• Weight: 61 kg
• Voltage: 230V AC ±5%, 50-60Hz
• Total power: 1800W
• Fuse protection: Main fuse T16A
• Dirt container: volume approx. 12l
• Main filter: filter area: 2.7m²
• Suction power: 100l/s
• Sound level: 45-65dB(A)
